Εγγύηση
|
3 Έτη |
Κατασκευαστής CPU
|
Intel |
Socket
|
1700 |
Chipset
|
Intel B760 |
Μέγεθος Μητρικής
|
ATX |
Τύπος Μνήμης
|
DDR5 |
Dimm Slots
|
4 |
Ταχύτητες Μνήμης
|
Max. 192GB, 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function. |
PCI Express 3.0 x1
|
2 |
PCI Express 4.0 x16
|
1 |
PCI Express 5.0 x16
|
1 |
Πλήθος SATA III 6Gb/s
|
4 |
Εσωτερικές Συνδέσεις
|
Fan and Cooling-related: 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ (USB4®) header. |
Έξοδοι USB 2.0
|
4 |
Έξοδοι USB 3.2
|
6 |

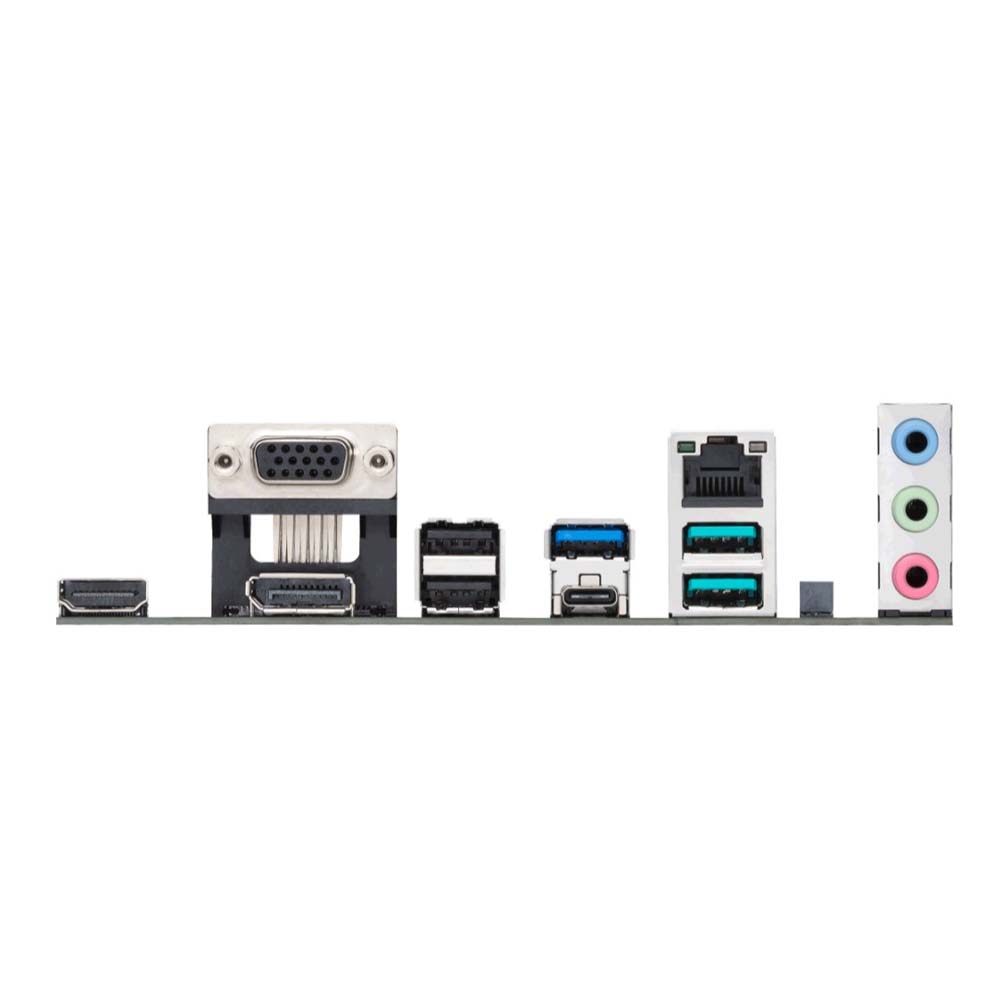

Έξοδοι Γραφικών
|
1 x DisplayPort v1.4**, 1 x VGA, 1 x HDMI v2.1*** * Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
Ethernet (LAN)
|
1 x Realtek 2.5Gb |
Κάρτα Ήχου
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features: - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

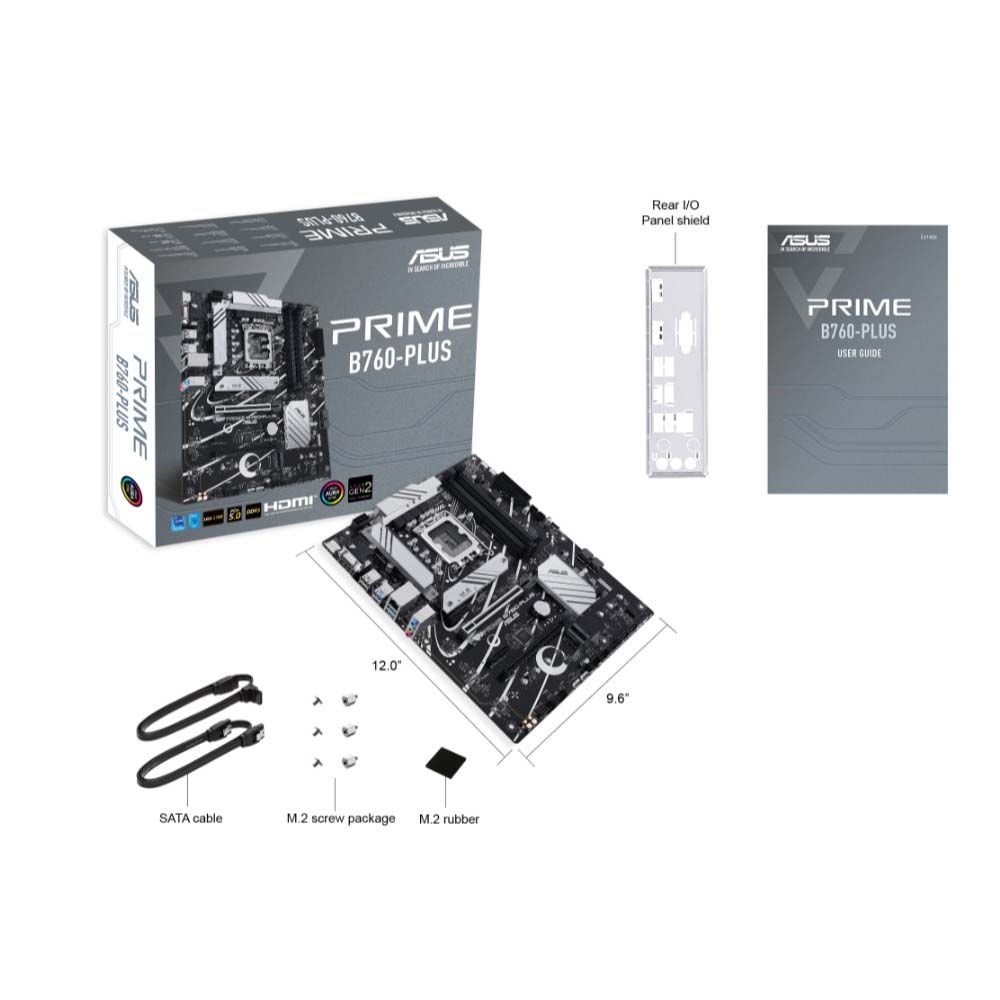

Πρόσθετα Χαρακτηριστικά
|

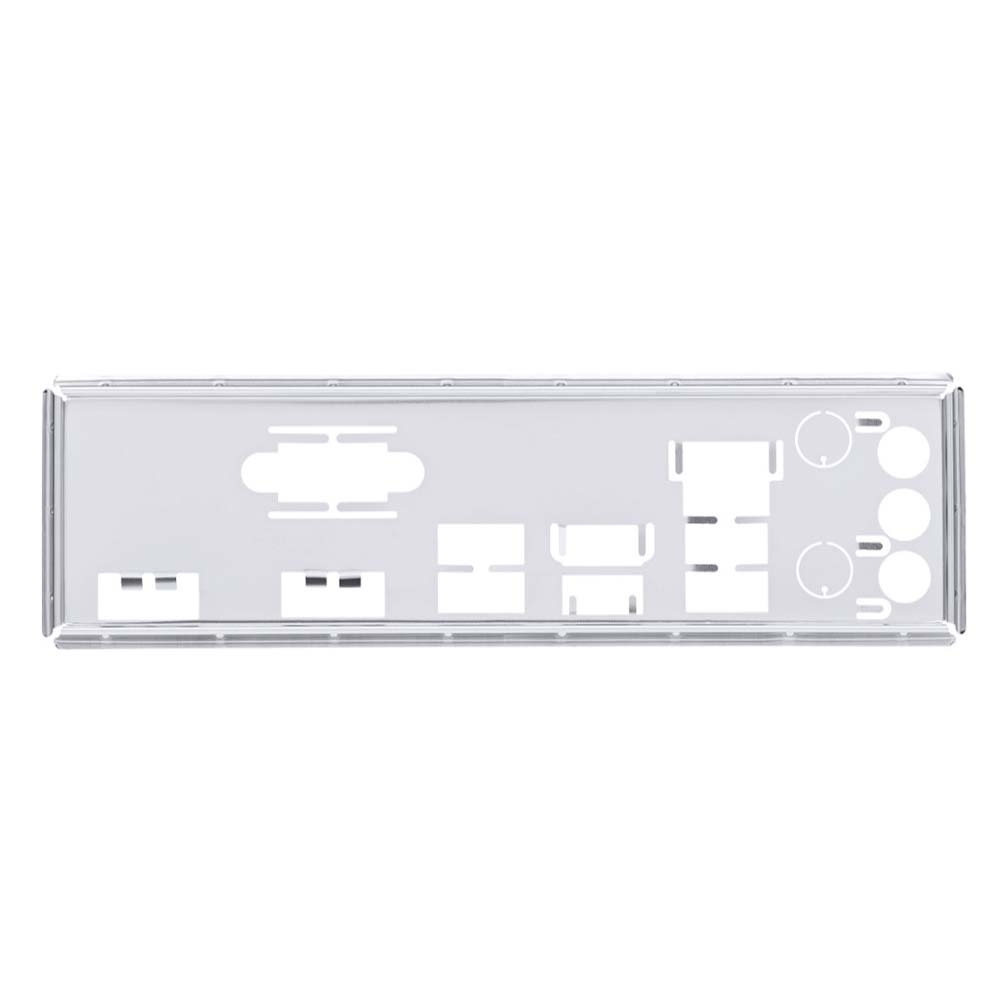

Cables: 2 x SATA 6Gb/s, Miscellaneous: 1 x I/O Shield/1 x M.2 Rubber Package/2 x Screw Packages for M.2 SSD, Documentation: 1 x User guide |
Βάρος
|
Μεικτό: 1.5Kg, Καθαρό: 1.2Kg |
Διαστάσεις L x W x H
|
Προϊόν: 305 x 244 mm |
