Εγγύηση | 3 Έτη |
Κατασκευαστής CPU | Intel |
Socket | 1700 |
Chipset | Intel B760 |
Μέγεθος Μητρικής | Micro ATX |
Τύπος Μνήμης | DDR4 |
Dimm Slots | 4 |
Ταχύτητες Μνήμης | DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules, up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules |
PCI Express 3.0 x16 | 1 |
PCI Express 4.0 x16 | 1 |
Πλήθος SATA III 6Gb/s | 4 |
Εσωτερικές Συνδέσεις | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper |
Έξοδοι USB 2.0 | 9 |
Έξοδοι USB 3.2 | 6 |
Τύπος Raid | 0, 1, 5, 10 |

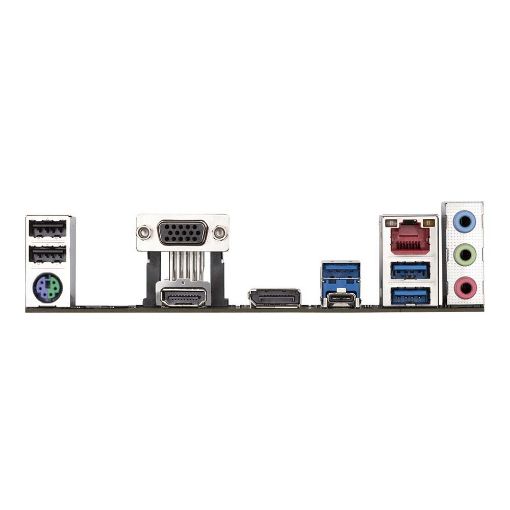

Έξοδοι Γραφικών | 1 x DisplayPort, supporting a maximum resolution of 4096x2304 @60Hz, Support for DisplayPort 1.2 version and HDCP 2.3, 1 x HDMI port, supporting a maximum resolution of 4096x2160 @60Hz, Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. Graphics specifications may vary depending on CPU support. |
Ethernet (LAN) | 1 x Realtek® 2.5GbE LAN |
Κάρτα Ήχου | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel, Support for S/PDIF Out. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
Βάρος | Μεικτό: 1.3Kg, Καθαρό: 0.9Kg |
Διαστάσεις L x W x H | Προϊόν: 244 x 244 mm |
