Εγγύηση | 3 Έτη |
Κατασκευαστής CPU | AMD |
Socket | AM4 |
Chipset | AMD B550 |
Μέγεθος Μητρικής | ATX |
Τύπος Μνήμης | DDR4 |
Dimm Slots | 4 |
Ταχύτητες Μνήμης | Up to 128 GB (32 GB single DIMM capacity) of system memory DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*, * ECC memory (ECC mode) support varies by CPU, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules |
PCI Express 3.0 x16 | 1 |
PCI Express 4.0 x16 | 1 |
Πλήθος SATA III 6Gb/s | 4 |
Εσωτερικές Συνδέσεις | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C™ port, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Clear CMOS jumper, *All fan headers are subject to support AIO_Pump, Pump, and high-performance fan with the capability of delivering up to 2A/12V @24W. |
Έξοδοι USB 2.0 | 6 |
Έξοδοι USB 3.2 | 4 |
Τύπος Raid | 0, 1, 10 |

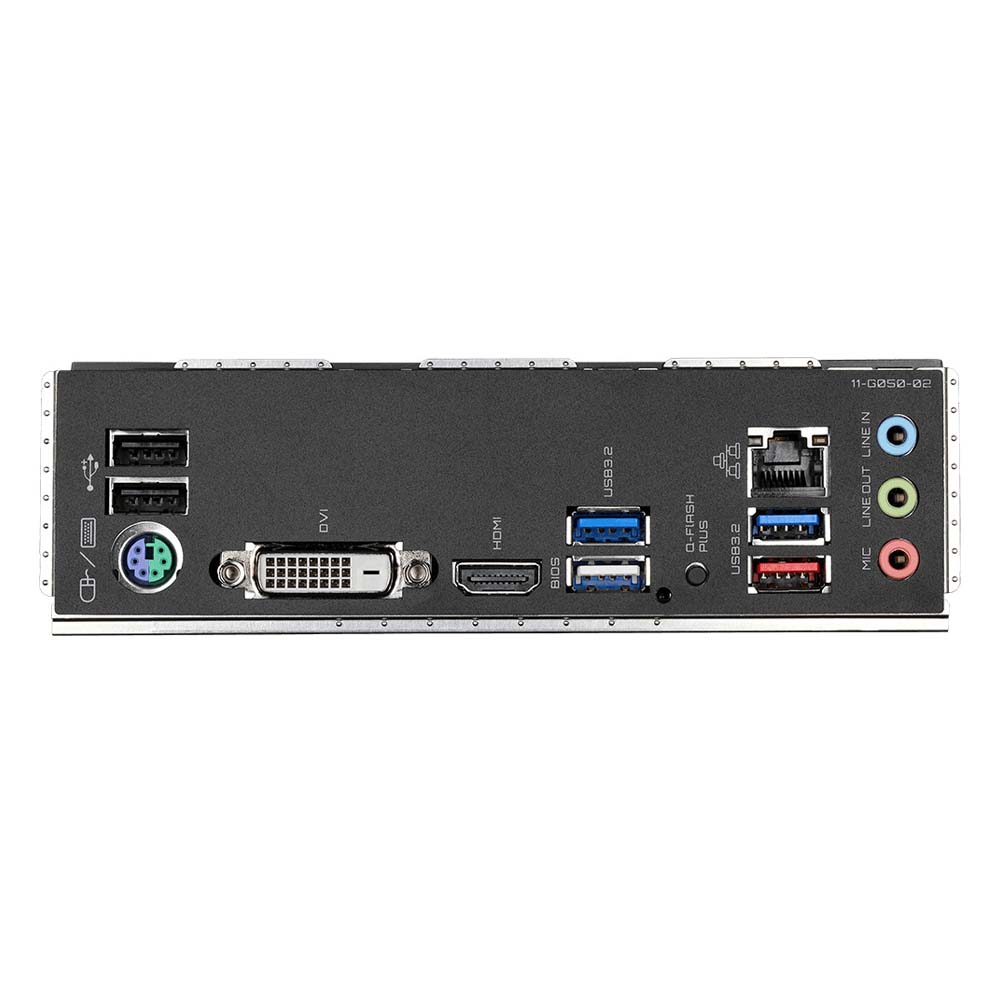

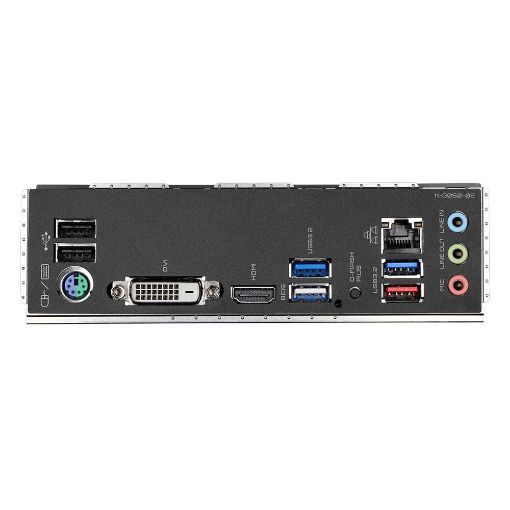

Έξοδοι Γραφικών | 1 x DVI-D, supporting a maximum resolution of 1920x1200@60 Hz, * The DVI-D port does not support D-Sub connection by adapter., 1 x HDMI v2.1, supporting a maximum resolution of 4096x2160@60 Hz |
Ethernet (LAN) | Realtek® GbE LAN |
Κάρτα Ήχου | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel. * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. |
Βάρος | Μεικτό: 1.8Kg, Καθαρό: 1Kg |
Διαστάσεις L x W x H | Προϊόν: 305 x 244 mm |
