Εγγύηση | 2 Έτη |
Κατασκευαστής CPU | AMD |
Socket | AM4 |
Chipset | AMD B550 |
Μέγεθος Μητρικής | ATX |
Τύπος Μνήμης | DDR4 |
Dimm Slots | 4 |
Ταχύτητες Μνήμης | AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Picasso) support 3400+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* Max. capacity of system memory: 128GB** Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots |
PCI Express 3.0 x1 | 2 |
PCI Express 3.0 x16 | 2 |
Πλήθος SATA III 6Gb/s | 6 |
Εσωτερικές Συνδέσεις | 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers*, 2 x Addressable LED Headers**, 1 x CPU Fan Connector (4-pin)***, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****, 1 x 24-pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection), *Support in total up to 12V/3A, 36W LED Strip, **Support in total up to 5V/3A, 15W LED Strip, ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power., ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power., CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, and CHA_FAN4/WP can auto-detect if a 3-pin or 4-pin fan is in use. |
Τύπος Raid | 0, 1, 10 |

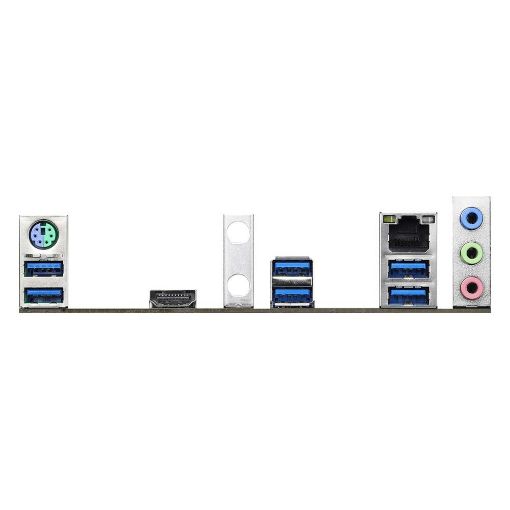

Έξοδοι Γραφικών | 1 x HDMI v2.1 (4096 x 2160 @60Hz) |
Ethernet (LAN) | Realtek RTL8111H GBe, Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, Supports PXE |
Κάρτα Ήχου | Realtek ALC1220/ALC1200 Audio Codec 7.1 HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Nahimic Audio |
Πρόσθετα Χαρακτηριστικά | Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 3 x Screw for M.2 Socket |
Βάρος | Μεικτό: 1.2Kg |
Διαστάσεις L x W x H | Προϊόν: 305 x 244 mm |
