Εγγύηση | 2 Έτη |
Κατασκευαστής CPU | Intel |
Socket | 1700 |
Chipset | Intel B760 |
Μέγεθος Μητρικής | Micro ATX |
Τύπος Μνήμης | DDR4 |
Dimm Slots | 2 |
Ταχύτητες Μνήμης | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 64GB*, Supports Intel® Extreme Memory Profile (XMP) 2.0, *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively., 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. |
PCI Express 3.0 x1 | 2 |
PCI Express 4.0 x16 | 1 |
Πλήθος SATA III 6Gb/s | 4 |
Εσωτερικές Συνδέσεις | 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin)*, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**, 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***, 1 x 24-pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 3 USB 2.0 ports), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports), *CPU_FAN1 supports the fan power up to 1A (12W)., **CPU_FAN2/WP supports the fan power up to 2A (24W)., ***CHA_FAN1~2/WP support the fan power up to 2A (24W)., CPU_FAN2/WP and CHA_FAN1~2/WP can auto-detect if a 3-pin or 4-pin fan is in use. |
Έξοδοι USB 2.0 | 5 |
Έξοδοι USB 3.2 | 6 |
Τύπος Raid | 0, 1, 5, 10 |

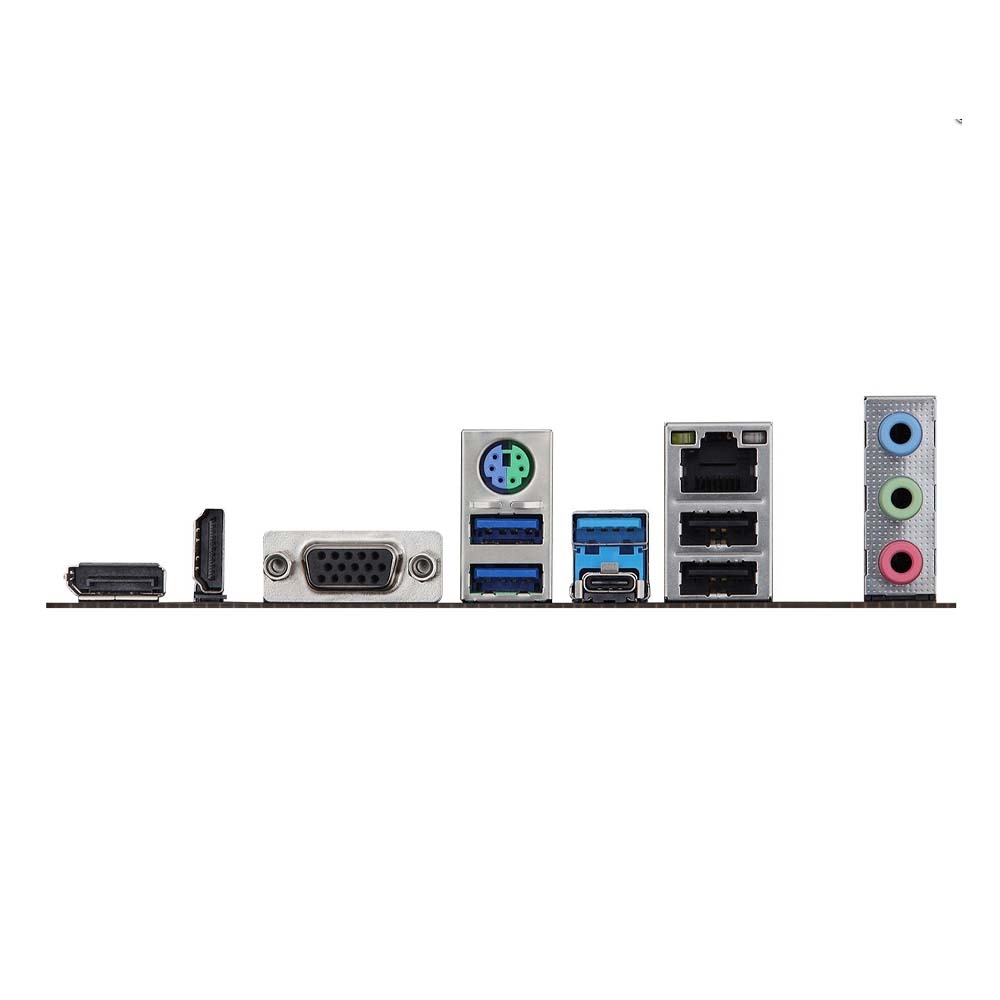

Έξοδοι Γραφικών | 1 x HDMI v2.1 TMDS HDCP 2.3 max. resolution 4K @60Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K @60Hz / 5K @120Hz, 1 x VGA FHD (1920x1080) @60Hz |
Ethernet (LAN) | Realtek 8111H GBe |
Κάρτα Ήχου | 7.1 HD AudioRealtek ALC887/897 |
Πρόσθετα Χαρακτηριστικά | 1 x User Manual, 1 x I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets |
Βάρος | Μεικτό: 0.7Kg |
Διαστάσεις L x W x H | Προϊόν: 244 x 201 mm |
