| Εγγύηση | 3 Έτη |
| Κατασκευαστής CPU | Intel |
| Socket | 1700 |
| Chipset | Intel H610 |
| Μέγεθος Μητρικής | Micro ATX |
| Τύπος Μνήμης | DDR5 |
| Dimm Slots | 2 |
| Ταχύτητες Μνήμης | Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| PCI Express 3.0 x1 | 1 |
| PCI Express 4.0 x16 | 1 |
| Πλήθος SATA III 6Gb/s | 4 |
| Εσωτερικές Συνδέσεις | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports additional 2 USB 2.0 ports, 3 x Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Έξοδοι USB 2.0 | 6 |
| Έξοδοι USB 3.2 | 3 |

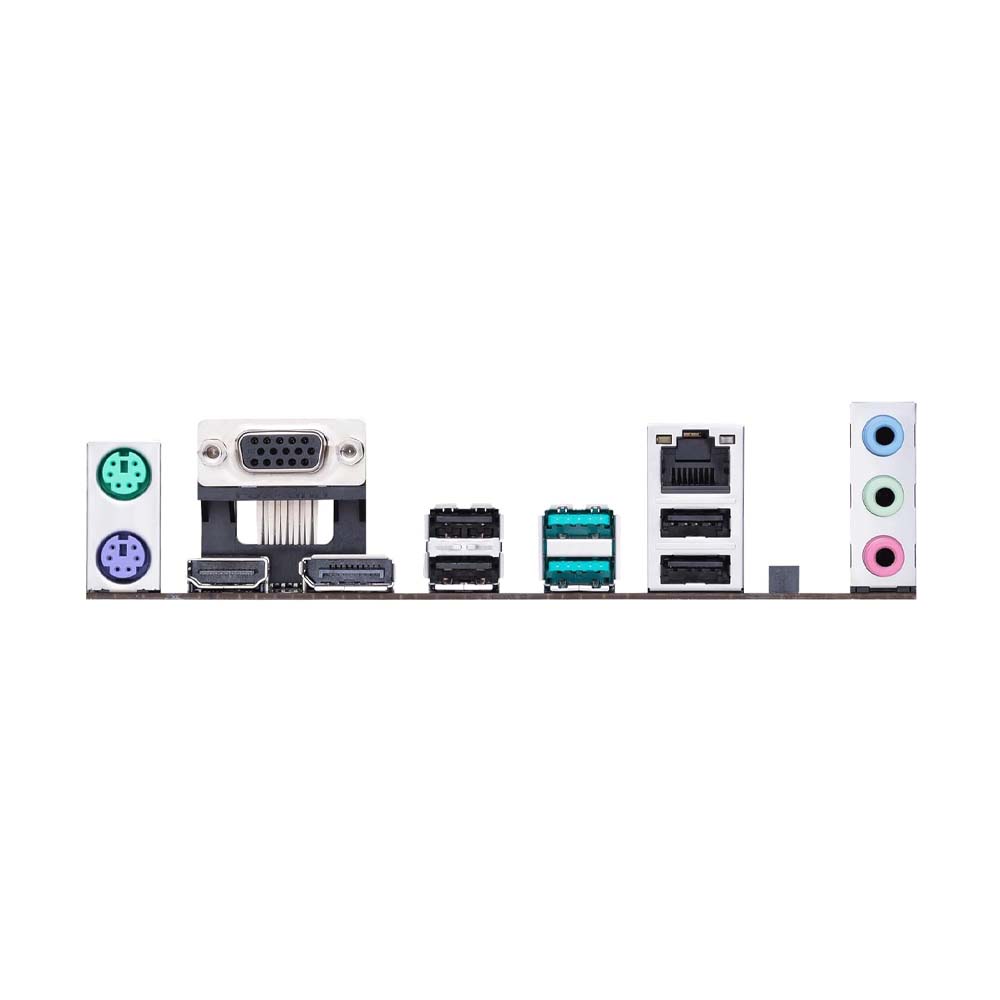

| Έξοδοι Γραφικών | 1 x DisplayPort v1.4 Supports max. 4K @60Hz, 1 x VGA, 1 x HDMITM v2.1 Supports max. 4K @60Hz |
| Ethernet (LAN) | Intel 1Gbe LAN, ASUS LANGuard |
| Κάρτα Ήχου | Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-bit/192 kHz playback Audio Features: Audio Shielding-Premium audio capacitors-Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Πρόσθετα Χαρακτηριστικά | Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x I/O Shield-1 x Screw package for M.2 SSD, Documentation: 1 x ACC Express Activation Key Card-1 x User guide |
| Βάρος | Μεικτό: 1.1Kg, Καθαρό: 0.6Kg |
| Διαστάσεις L x W x H | Προϊόν: 244 x 216 mm |
