Εγγύηση | 3 Έτη |
Κατασκευαστής CPU | Intel |
Socket | 1700 |
Chipset | Intel H610 |
Μέγεθος Μητρικής | Micro ATX |
Τύπος Μνήμης | DDR4 |
Dimm Slots | 2 |
Ταχύτητες Μνήμης | Max. 64GB 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP) Actual memory data rate depends on the CPU types and DRAM modules |
PCI Express 3.0 x1 | 1 |
PCI Express 4.0 x16 | 1 |
Πλήθος SATA III 6Gb/s | 4 |
Εσωτερικές Συνδέσεις | Fan and Cooling-related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous: 1 x RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header. |
Έξοδοι USB 2.0 | 3 |
Έξοδοι USB 3.2 | 3 |

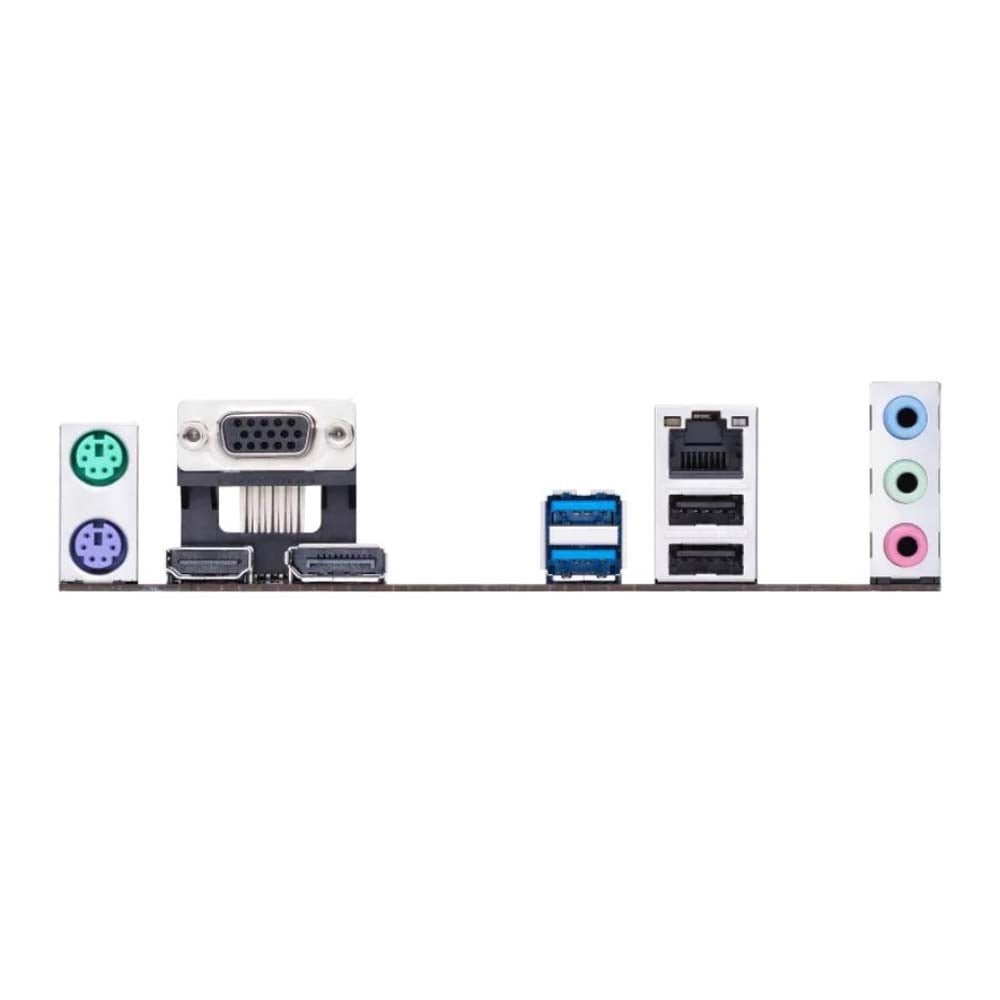

Έξοδοι Γραφικών | 1 x DisplayPort v1.4, 1 x VGA, 1 x HDMI v2.1, Graphics specifications may vary between CPU types, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1. |
Ethernet (LAN) | 1 x Realtek 1Gb |
Κάρτα Ήχου | Realtek 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-bit/192 kHz playback, Audio Features: - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

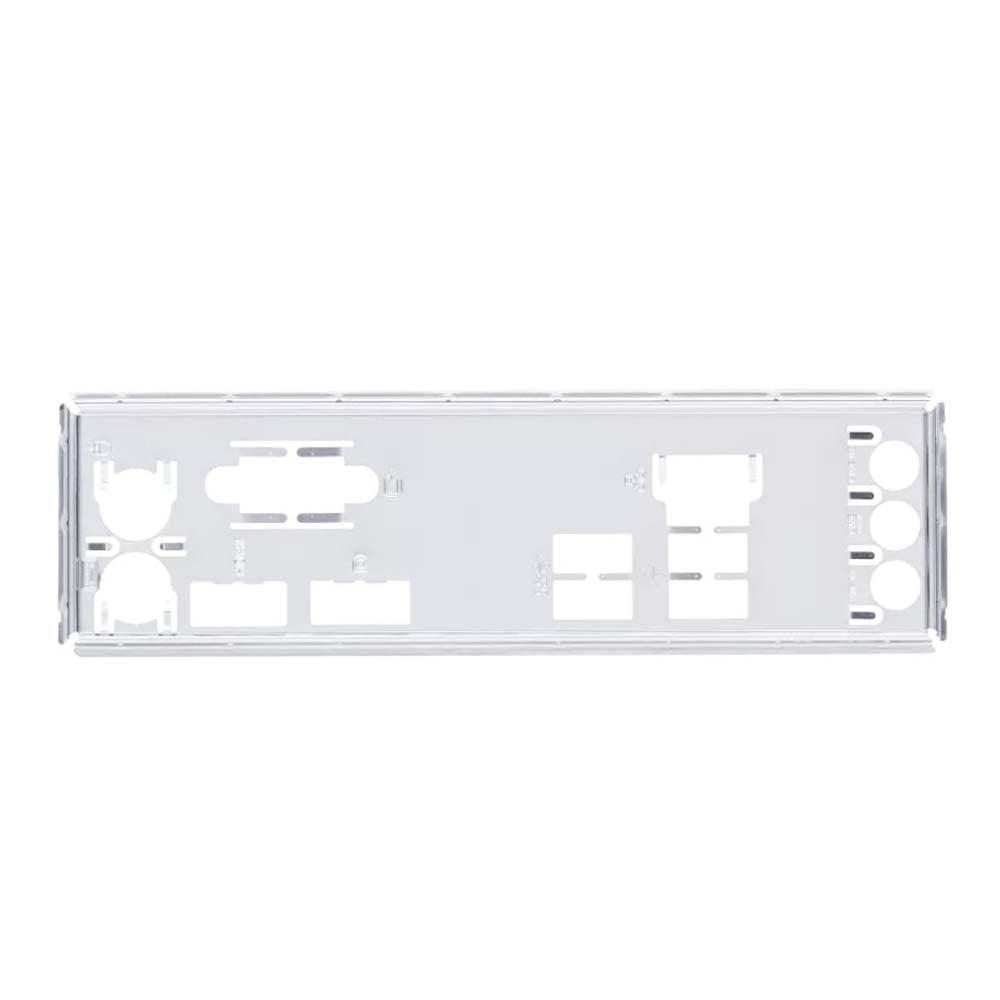

Πρόσθετα Χαρακτηριστικά | Cables: 2 x SATA 6Gb/s, Miscellaneous: 1 x I/O Shield/1 x M.2 SSD screw package, Installation Media: 1 x Support DVD, Documentation: 1 x ACC Express Activation Key Card/ 1 x User guide |
Βάρος | Μεικτό: 1.1Kg, Καθαρό: 0.8Kg |
Διαστάσεις L x W x H | Προϊόν: 244 x 211 mm |
