| Εγγύηση | 2 Έτη |
| Κατασκευαστής CPU | Intel |
| Socket | 1700 |
| Chipset | Intel H610 |
| Μέγεθος Μητρικής | Micro ATX |
| Τύπος Μνήμης | DDR5 |
| Dimm Slots | 2 |
| Ταχύτητες Μνήμης | Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit |
| PCI Express 3.0 x1 | 1 |
| PCI Express 4.0 x16 | 1 |
| Πλήθος SATA III 6Gb/s | 4 |
| Εσωτερικές Συνδέσεις | Fan and Cooling related: 1 x 4-pin CPU Fan header / 2 x 4-pin Chassis Fan headers| Power related: 1 x 24-pin Main Power connector / 1 x 8-pin +12V Power connector | Storage related: 1 x M.2 slot (Key M) / 4 x SATA 6Gb/s ports | USB: 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports / 1 x USB 2.0 header supports 2 additional USB 2.0 ports | Miscellaneous: 1 x RGB header / 1 x Clear CMOS header / 1 x Front Panel Audio header (AAFP) / 1 x COM Port header / 1 x S/PDIF Out header / 1 x Speaker header / 1 x SPI TPM header (14-1pin) / 1 x 10-1 pin System Panel header |

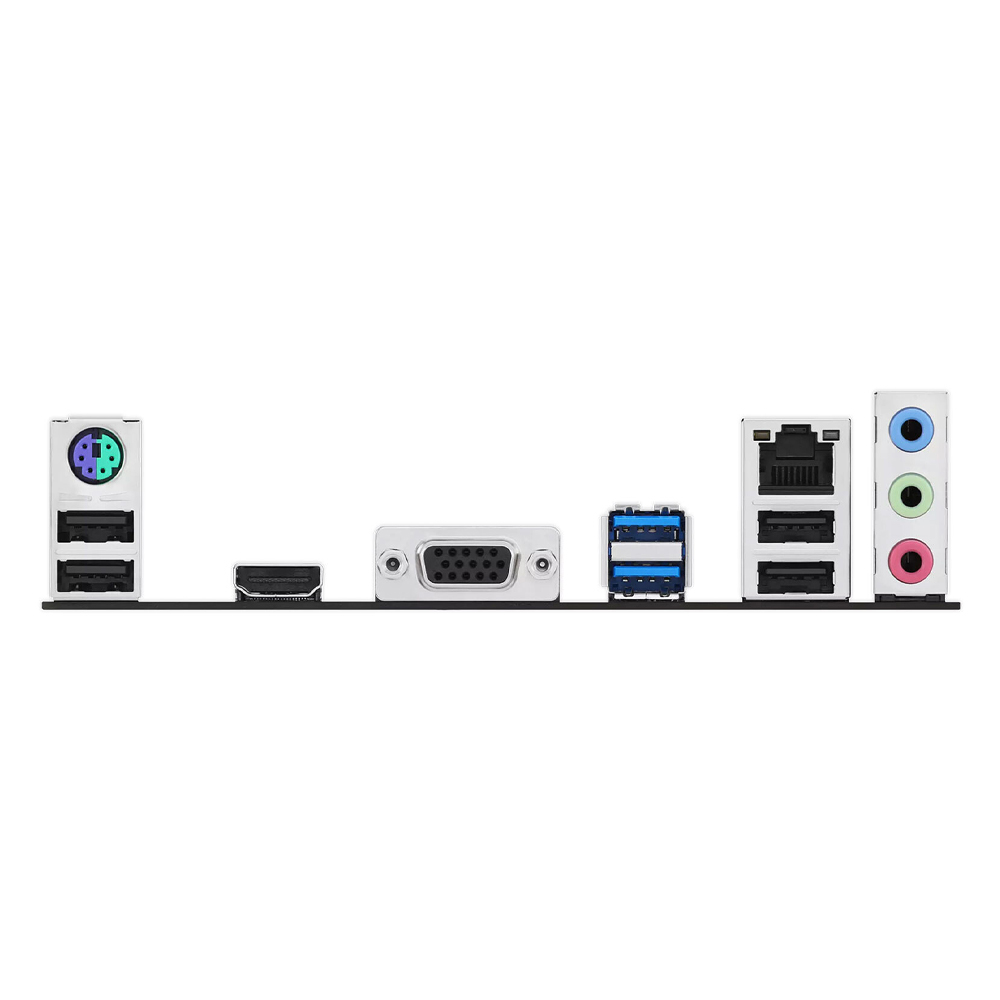

| Έξοδοι USB 2.0 | 4 |
| Έξοδοι USB 3.2 | 2 |
| Έξοδοι Γραφικών | 1 x VGA/ 1 x HDMI v2.1 |
| Ethernet (LAN) | 1 x Realtek 1Gb Ethernet |
| Κάρτα Ήχου | Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback |
| Πρόσθετα Χαρακτηριστικά | BIOS: 128 Mb Flash ROM, UEFI AMI BIOS |
| Διαστάσεις L x W x H | 23.4 x 20.3 cm |
