Εγγύηση | 3 Έτη |
Κατασκευαστής CPU | Intel |
Socket | 1700 |
Chipset | Intel Z790 |
Μέγεθος Μητρικής | ATX |
Τύπος Μνήμης | DDR5 |
Dimm Slots | 4 |
Ταχύτητες Μνήμης | Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
PCI Express 3.0 x1 | 1 |
PCI Express 4.0 x16 | 3 |
PCI Express 5.0 x16 | 1 |
Πλήθος SATA III 6Gb/s | 4 |
Εσωτερικές Συνδέσεις | Fan and Cooling-related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt™ (USB4®) Header |
Έξοδοι USB 2.0 | 6 |
Έξοδοι USB 3.2 | 7 |
Τύπος Raid | 0, 1, 5, 10 |
Έξοδοι Γραφικών | 1 x DisplayPort v1.4, 1 x HDMI v2.1 Graphics specifications may vary between CPU types, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1. |
Wireless | WiFi 6 2x2 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2 |
Ethernet (LAN) | 1 x Realtek 2.5Gb |
Κάρτα Ήχου | Realtek 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features: - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

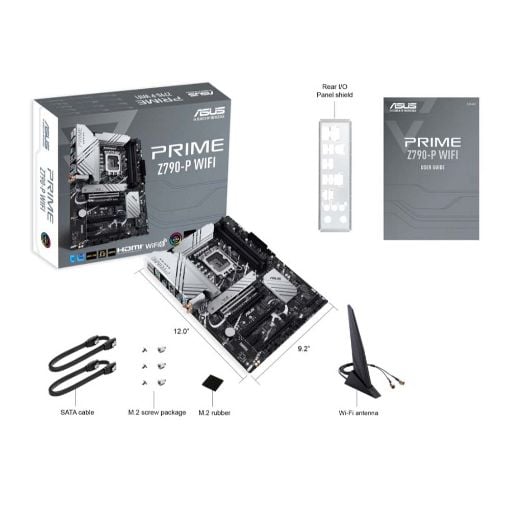

Πρόσθετα Χαρακτηριστικά | Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD, Documentation: 1 x User guide |
Βάρος | Μεικτό: 2Kg, Καθαρό: 1.6Kg |
Διαστάσεις L x W x H | Προϊόν: 305 x 234 mm |
