| Εγγύηση | 3 Έτη |
| Κατασκευαστής CPU | Intel |
| Socket | 1851 |
| Chipset | Intel Z890 |
| Μέγεθος Μητρικής | ATX |
| Τύπος Μνήμης | DDR5 |
| Dimm Slots | 4 |
| Ταχύτητες Μνήμης | Υποστηρίζει έως και 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM | max. 256GB | Dual channel memory architecture | Supports Intel® Extreme Memory Profile (XMP) memory module | Supports DIMM Flex | DIMM Fit | ASUS Enhanced Memory Profile III (AEMPIII) |
| Πλήθος SATA III 6Gb/s | 4 |
| Εσωτερικές Συνδέσεις | Fan and Cooling Related: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 5x 4-pin Chassis Fan headers || Power Related: 1x 24-pin Main Power connector, 2x 8-pin +12V CPU Power connector || Storage Related: 5x M.2 slots (Key M), 4x SATA 6Gb/s ports || USB: 1x USB 20Gbps connector (supports USB Type-C®), 1x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1x USB 2.0 header supports 2 additional USB 2.0 ports || Miscellaneous: 3x Addressable Gen2 headers, 1x Clear CMOS button, 1x COM Port header, 1x CPU Over voltage jumper, 1x Chassis Intrusion header, 1x Front Panel Audio header (F_AUDIO), 1x SPI TPM header (14-1 pin), 1x 10-1 pin Front System Panel header, 1x Thermal Sensor header |
| Τύπος Raid | 0, 1, 5, 10 |
| Έξοδοι Γραφικών | 1x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) || 2x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs (Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in) || 1x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs (Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in) || (Οι προδιαγραφές γραφικών ενδέχεται να διαφέρουν μεταξύ των τύπων CPU. Ανατρέξτε στις προδιαγραφές CPU του κατασκευαστή) |
| Wireless | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) | Supports 2.4/5/6GHz frequency band | Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate | Bluetooth® v5.4 |
| Ethernet (LAN) | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Κάρτα Ήχου | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC || Impedance sense for front and rear headphone outputs || Internal audio Amplifier to enhance the highest quality sound for headphone and speakers || Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking || High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) || Supports up to 32-Bit/192 kHz playback ||Audio Features: Gold-plated audio jacks, Premium audio capacitors, Dedicated audio PCB layers |

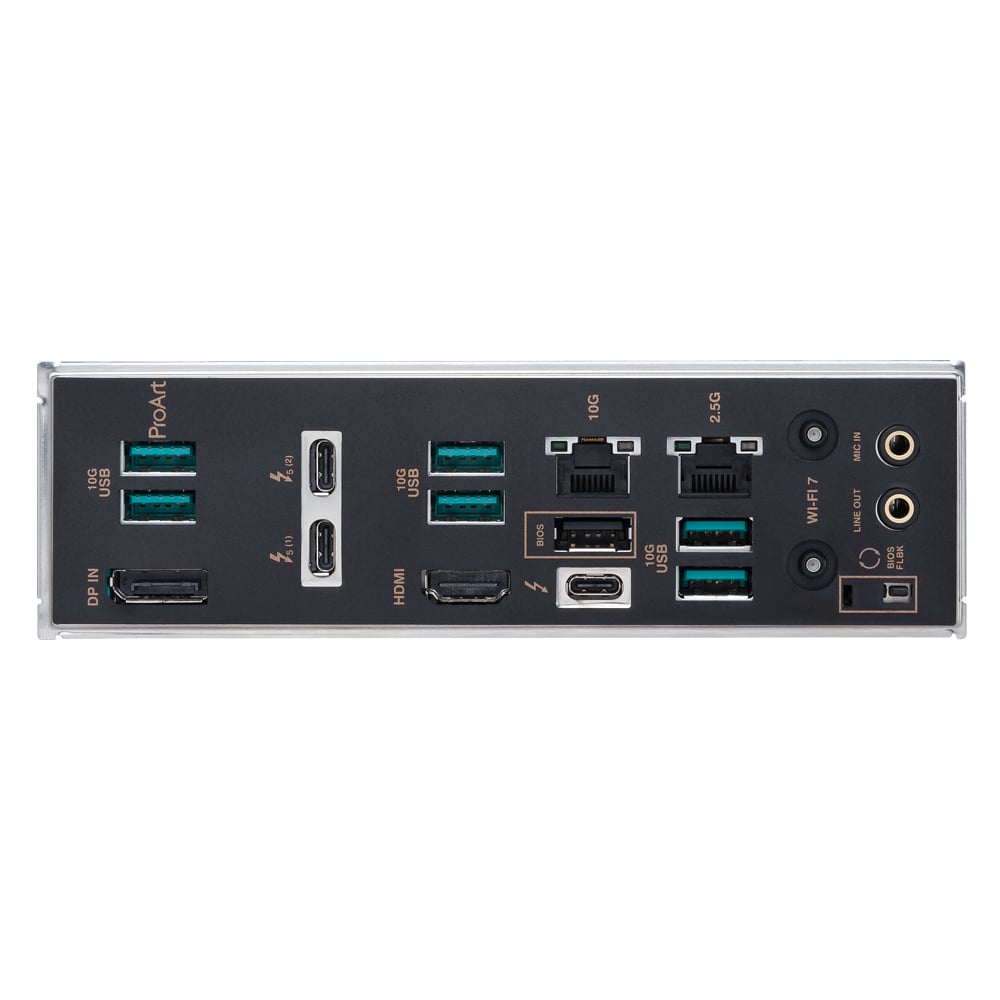

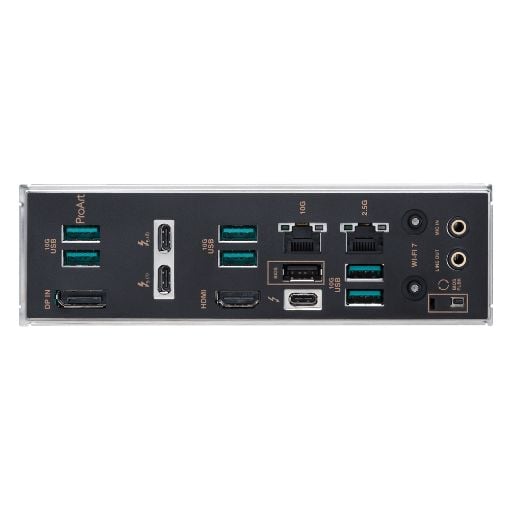

| Πρόσθετα Χαρακτηριστικά | Back I/O Ports: 2x Thunderbolt™ 5 USB Type-C® ports, 1x USB4 / Thunderbolt™ Type-C®port, 6x USB 10Gbps ports (6 x Type-A), 1x USB 2.0 port (1 x Type-A), 1x DisplayPort (Input only), 1x HDMI™ port, 1x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet port, 2x Gold-plated audio jacks, 1x BIOS FlashBack™ button, 2x Thunderbolt™ 5 USB Type-C® ports, 1x USB4 / Thunderbolt™ Type-C®port, 6x USB 10Gbps ports (6 x Type-A), 1x USB 2.0 port (1 x Type-A), 1x DisplayPort (Input only), 1x HDMI™ port, 1x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet port, 2x Gold-plated audio jacks, 1x BIOS FlashBack™ button || Expansion Slots -- Intel® Core™ Ultra Processors (Series 2): 2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) -- Intel® Z890 Chipset: 1x PCIe 4.0 x16 slot (supports x4 mode) || Storage: Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports || Windows 11 (22H2 & later) |
| Διαστάσεις L x W x H | 30.5 cm x 24.4 cm |
